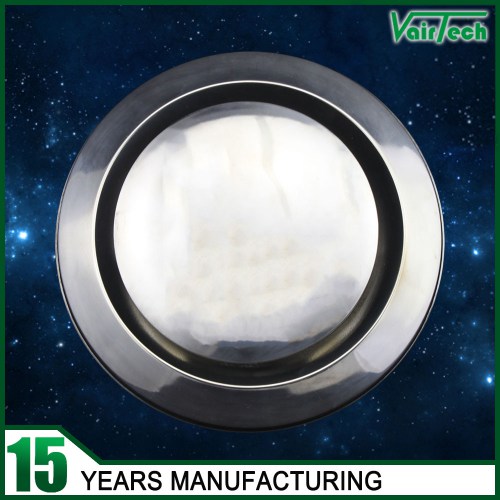

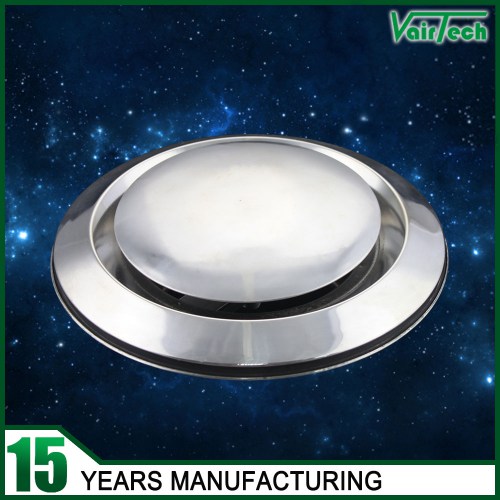

Stainless Steel Exhaust Disc Air Valve, Stainless Steel Ceiling Air Return Ventilation Disc Valve

//Stainless Steel Exhaust Disc Air Valve, Stainless Steel Ceiling Air Return Ventilation Disc Valve

Stainless Steel Exhaust Disc Air Valve, Stainless Steel Ceiling Air Return Ventilation Disc Valve

700.00

PRODCUT DESCRIPTION

Construction:

  • Panel, Cylinder and Disc: High quality stainless steel.

Description:.

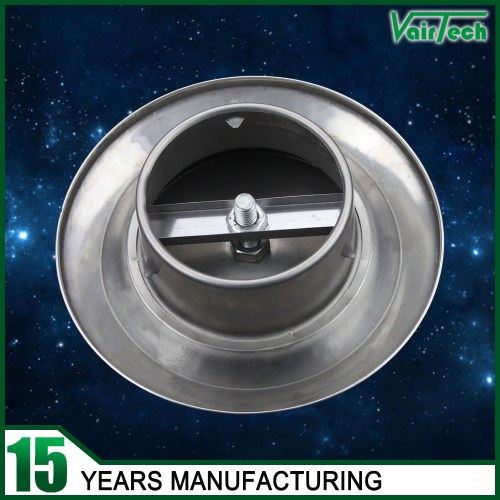

  • Disc is fixed to the frame by threaded rod.
  • Air flow can be adjusted by regulating the cone up and down(+A or -A).
  • Foam gasket is sealed around the back of the frame to avoid the air leakage.
  • Disc valves are best suited to air distribution systems handling relatively low air flow rates within small circular duct work. It is recomm-ened for air supplying of small space,exha-ust of greasy and damp air in damp areas such as toilets, bathrooms and kitchens.
  • It can be mounted in the wall, ceiling or exposed to air ducts with mounting rings.

Surface Finish:

  • Polished

Size:

Item Code

Neck
Φ A (mm)

Face
Φ B (mm)

H

DV-SR-100

98

138

46

DV-SR-125

123

165

46

DV-SR-150

148

200

46

DV-SR-160

158

210

46

DV-SR-200

198

250

46
